THE RESIDENTIAL COLLECTION

A life,
in balance.

Temperature, humidity and air quality, beautifully considered.

THE AIR COLLECTION

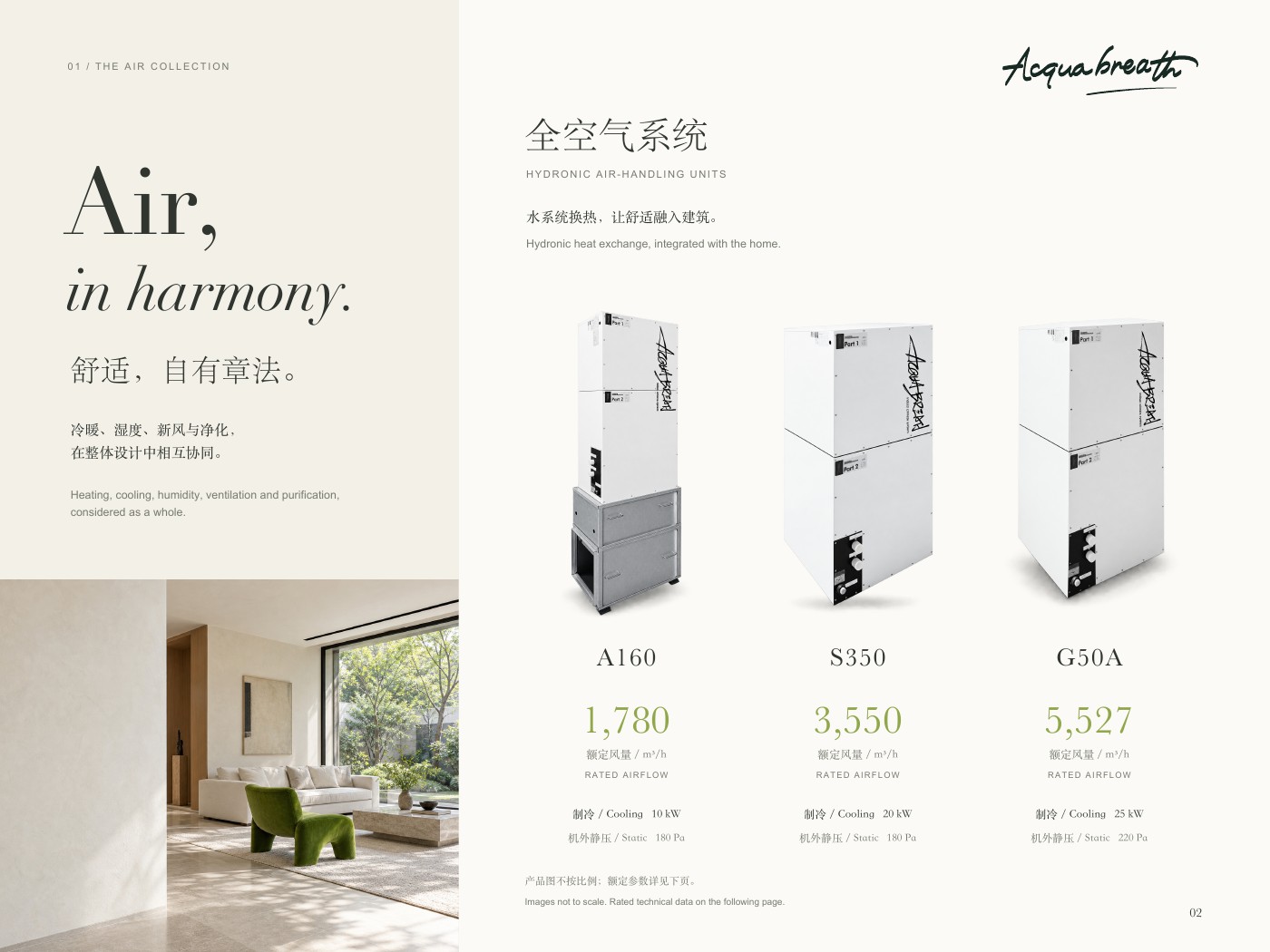

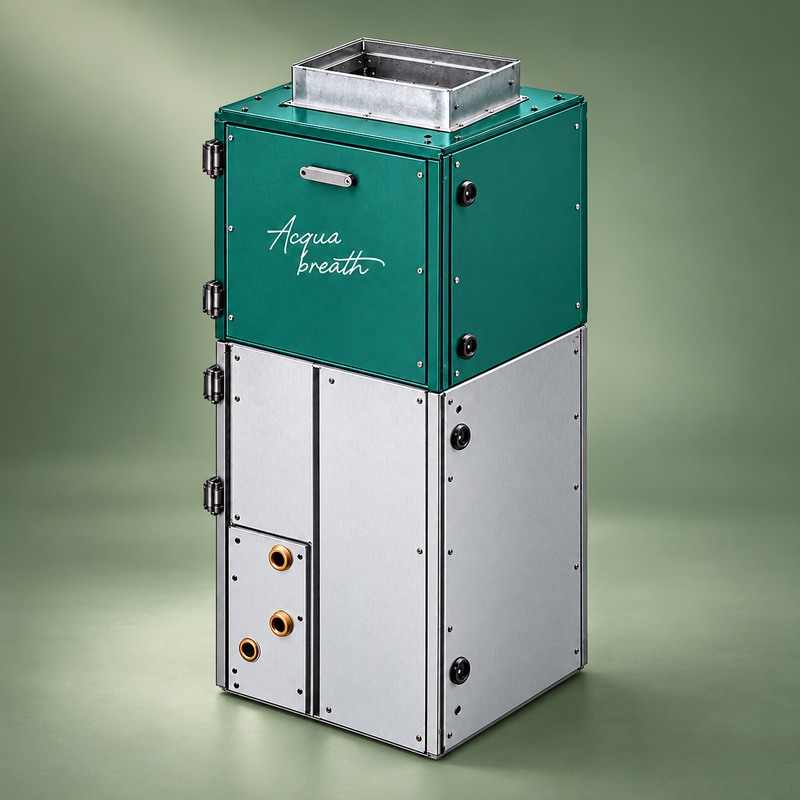

HYDRONIC AIR-HANDLING UNITS

Air, in harmony.

Hydronic heat exchange, integrated with the home.

Air,
in harmony.

Heating, cooling, humidity, ventilation and purification, considered as a whole.

Images not to scale. Rated technical data on the following page.

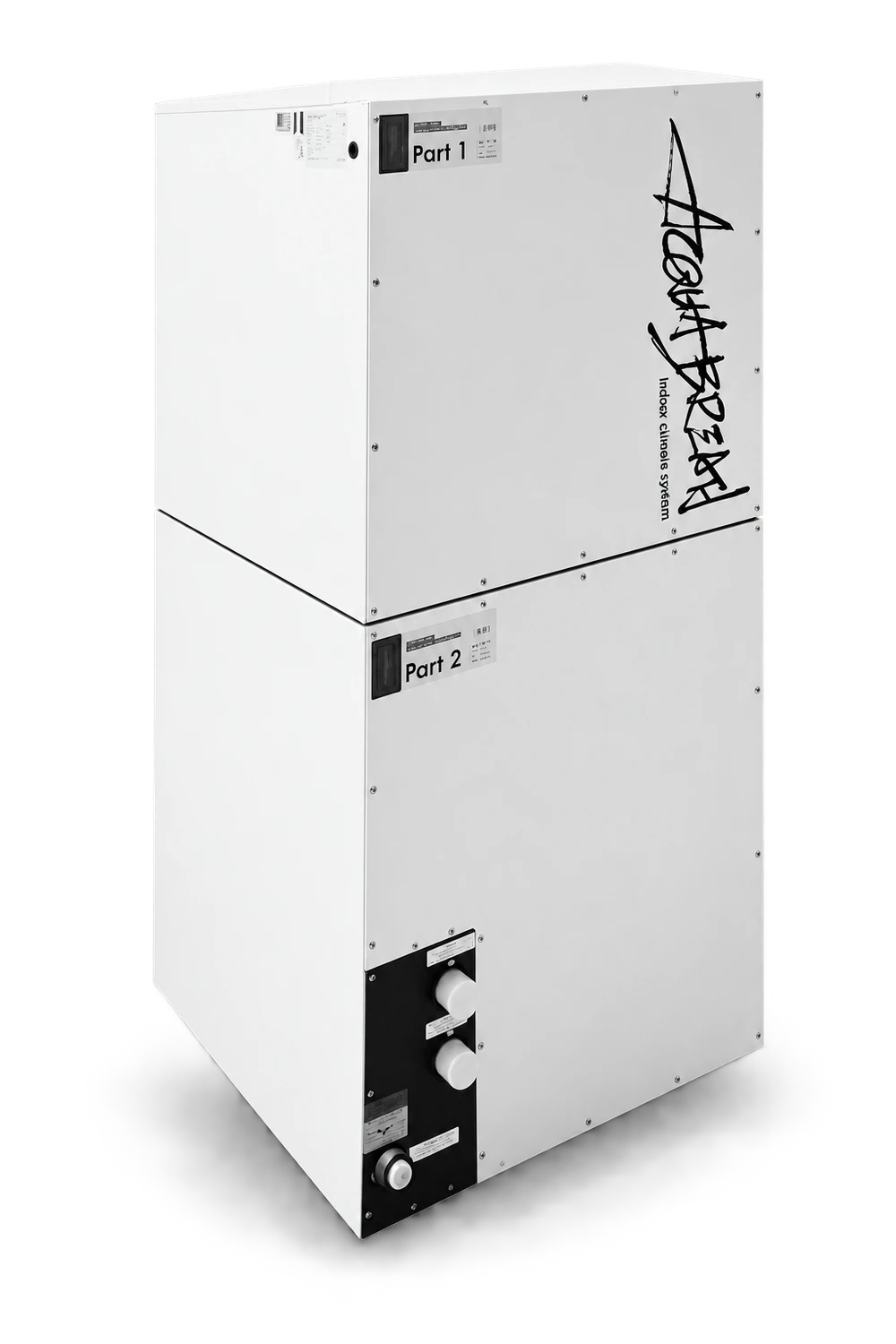

MODULAR / AIR HANDLING

Each module, a purpose.

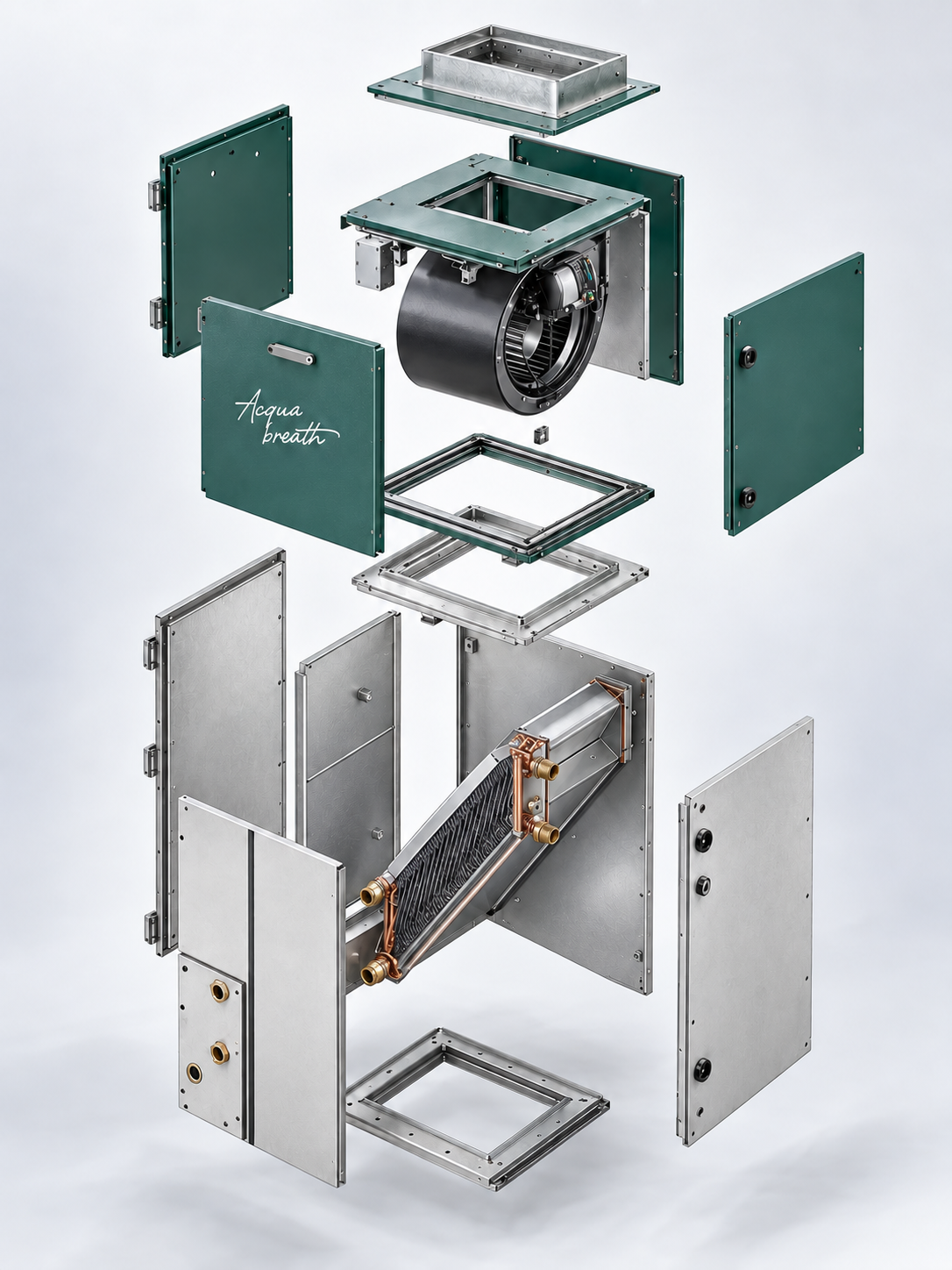

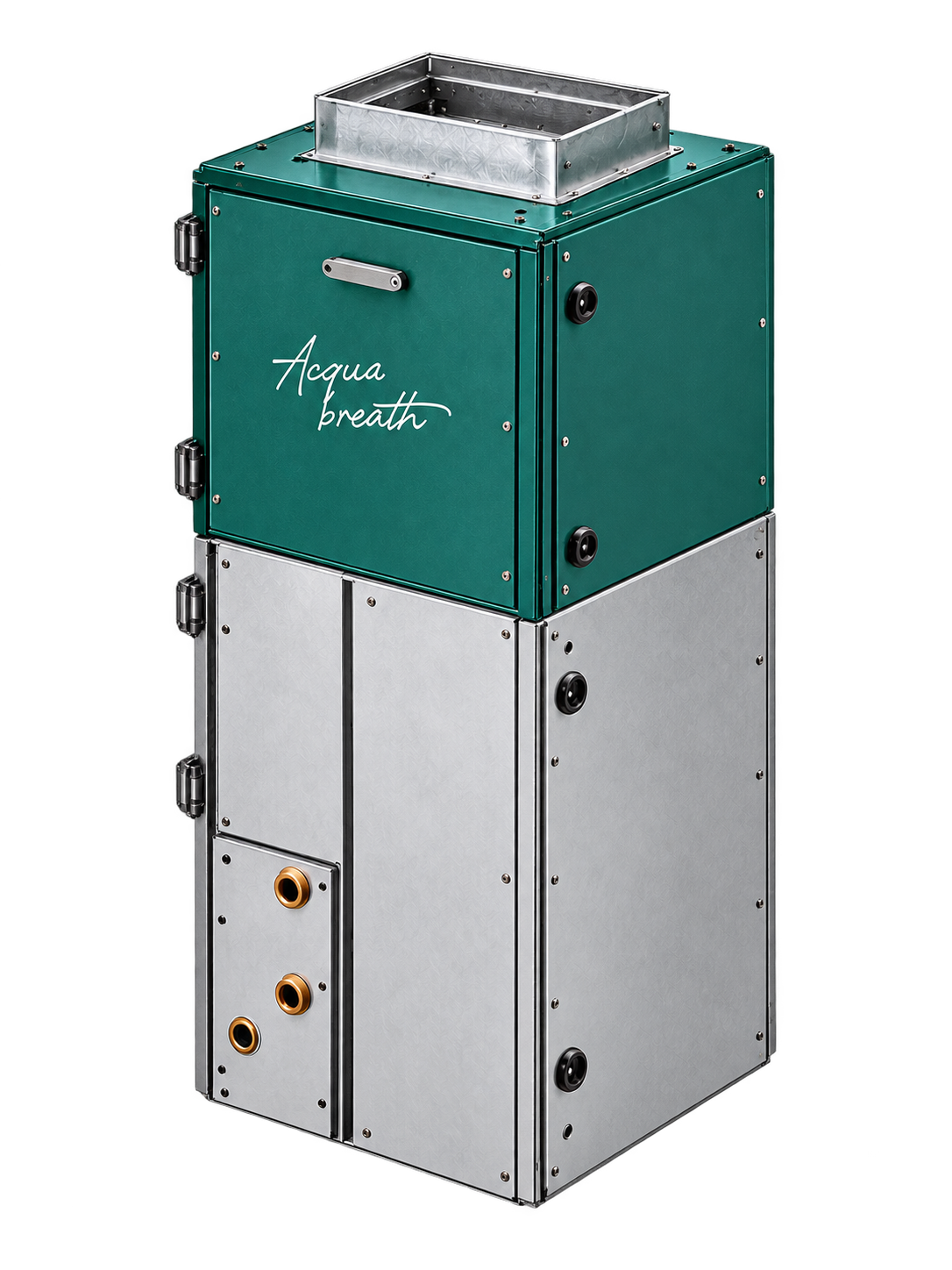

Fan section · Heat exchange · Electronic purification

Double-click the unit to open; double-click again to assemble.

Double-click to explore

Original system illustration · View

All-air system scene from the original collection

Original all-air technical and system illustration

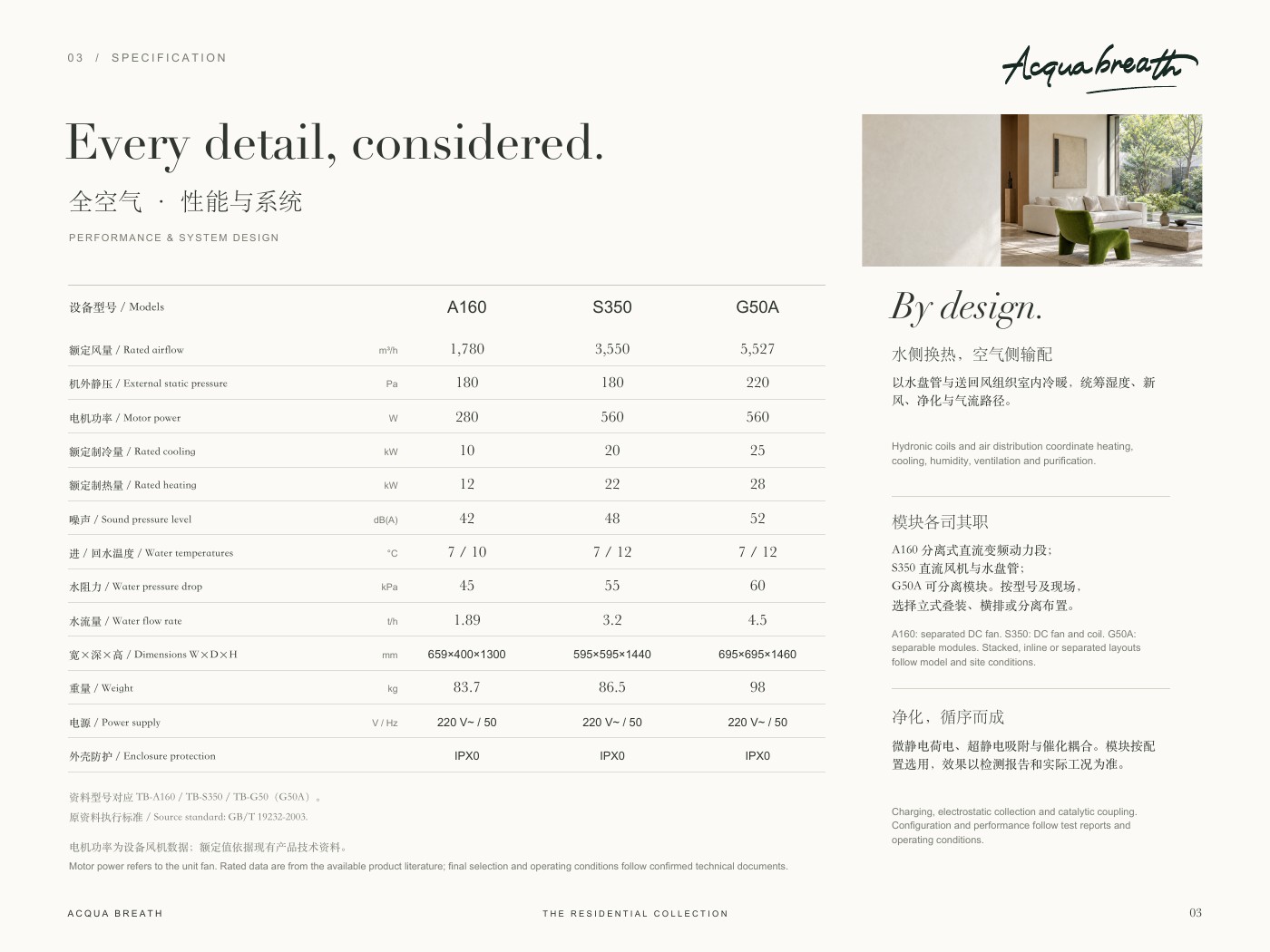

PERFORMANCE & SYSTEM DESIGN

TECHNICAL REGISTER

Every detail, considered.

By design.

Model viewFind a parameterSwipe to view the complete data


Parameter / unit	A160	S350	G50A

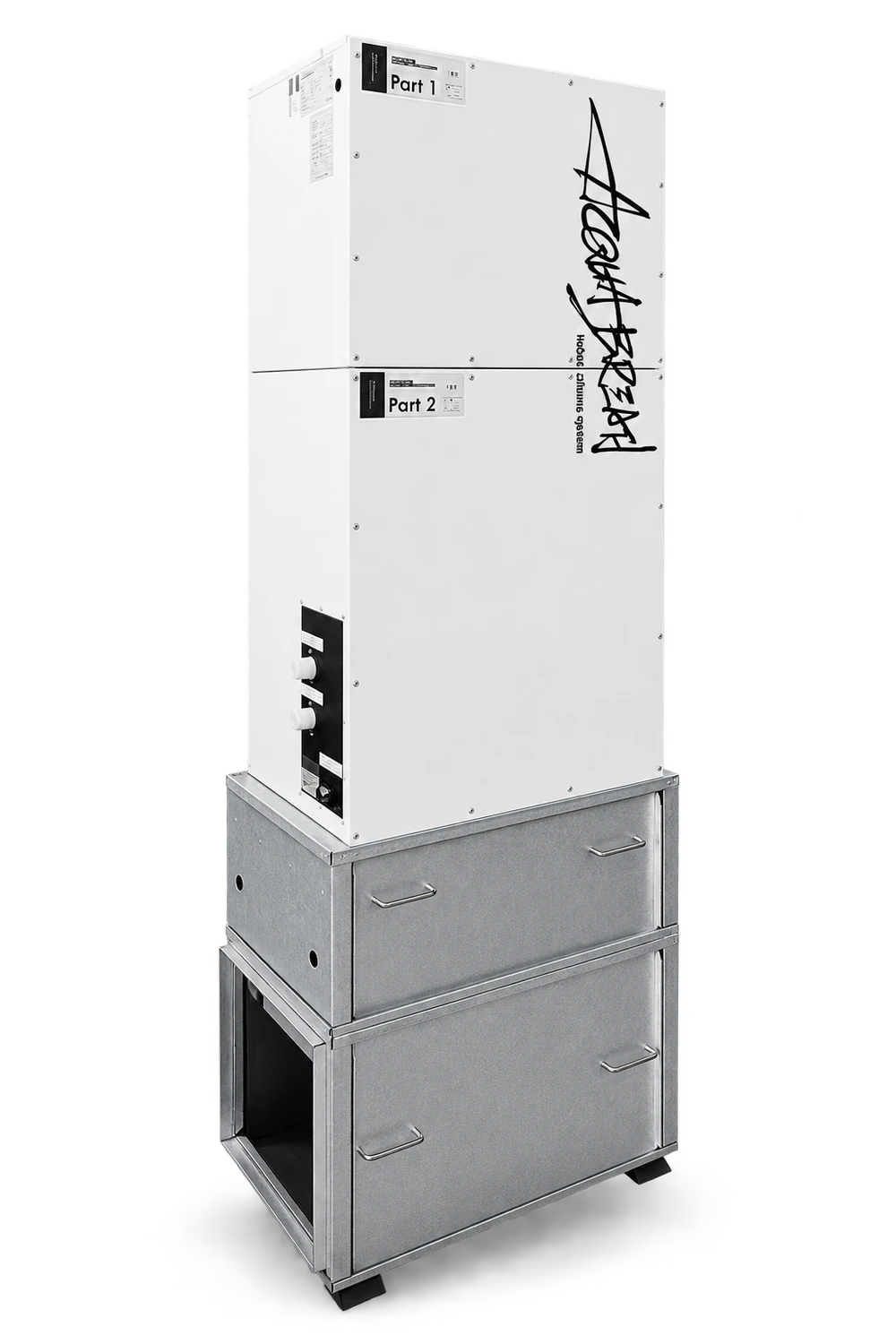

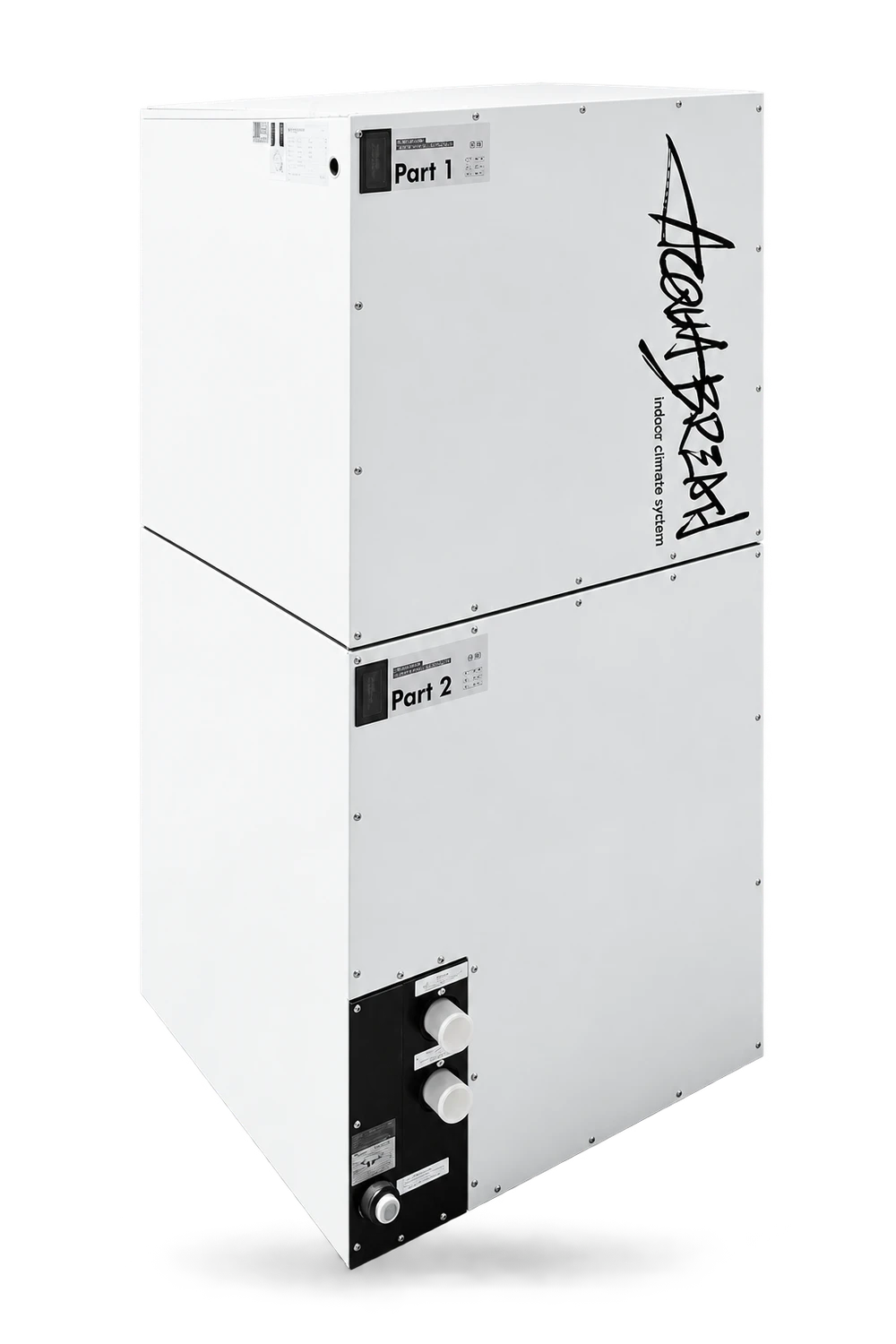

Rated airflowm³/h	1,780	3,550	5,527
External static pressurePa	180	180	220
Motor powerW	280	560	560
Rated coolingkW	10	20	25
Rated heatingkW	12	22	28
Sound pressure leveldB(A)	42	48	52
Water temperatures°C	7 / 10	7 / 12	7 / 12
Water pressure dropkPa	45	55	60
Water flow ratet/h	1.89	3.2	4.5
Dimensions W×D×Hmm	659×400×1300	595×595×1440	695×695×1460
Weightkg	83.7	86.5	98
Power supplyV / Hz	220 V~ / 50	220 V~ / 50	220 V~ / 50
Enclosure protection	IPX0	IPX0	IPX0

Source model correspondence: TB-A160 / TB-S350 / TB-G50 (G50A).

Source standard: GB/T 19232-2003.

Motor power refers to the unit fan. Rated data are from the available product literature; final selection and operating conditions follow confirmed technical documents.

Hydronic coils and air distribution coordinate heating, cooling, humidity, ventilation and purification.

A160: separated DC fan. S350: DC fan and coil. G50A: separable modules. Stacked, inline or separated layouts follow model and site conditions.

Charging, electrostatic collection and catalytic coupling. Configuration and performance follow test reports and operating conditions.

ENERGY, CONSIDERED

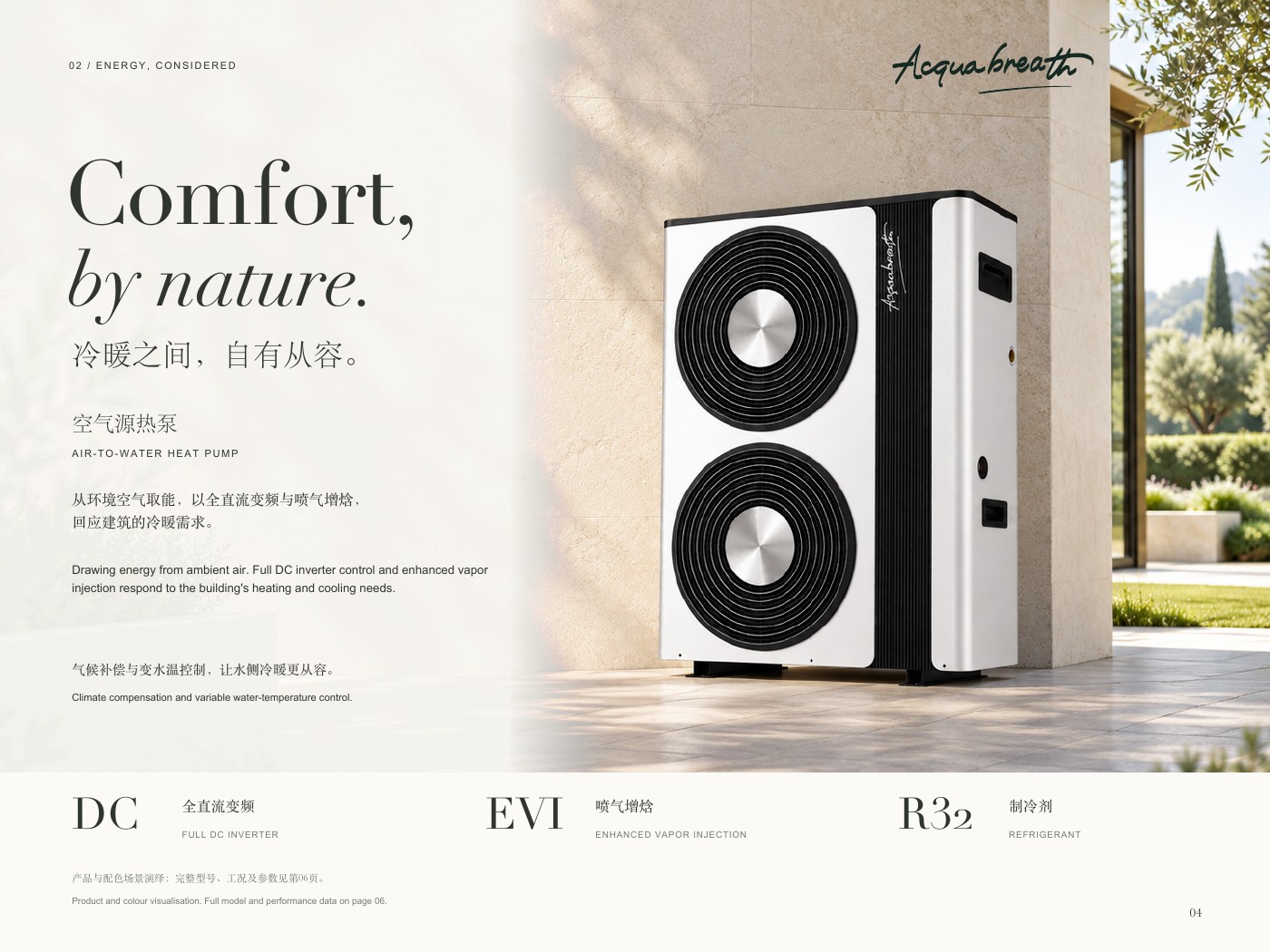

AIR-TO-WATER HEAT PUMP

Comfort,
by nature.

Drawing energy from ambient air. Full DC inverter control and enhanced vapor injection respond to the building's heating and cooling needs.

Climate compensation and variable water-temperature control.

DC: FULL DC INVERTER
EVI: ENHANCED VAPOR INJECTION
R32: REFRIGERANT

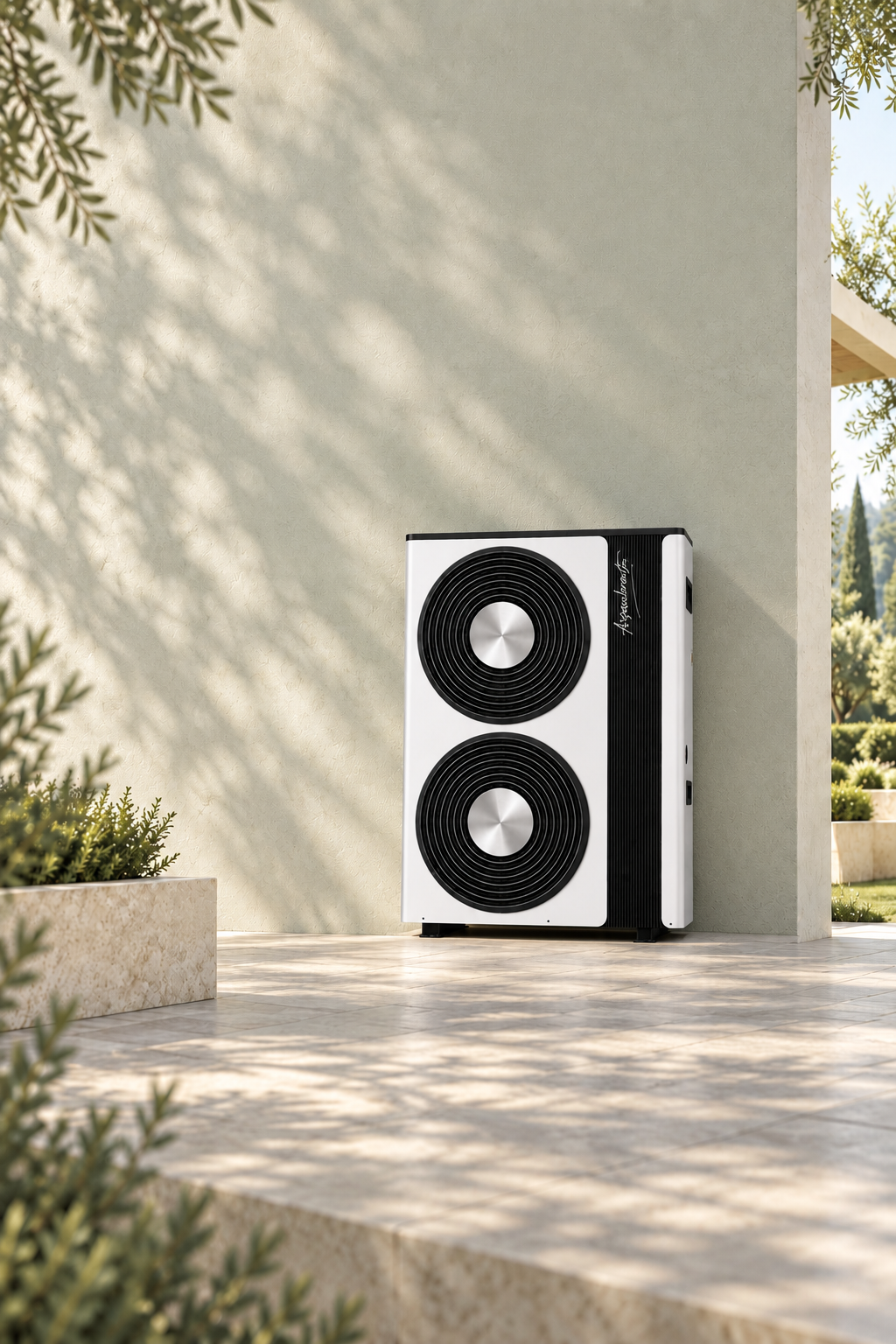

Product and colour visualisation. Full model and performance data on page 06.

ENGINEERING

THE DETAILS BEHIND THE EXPERIENCE

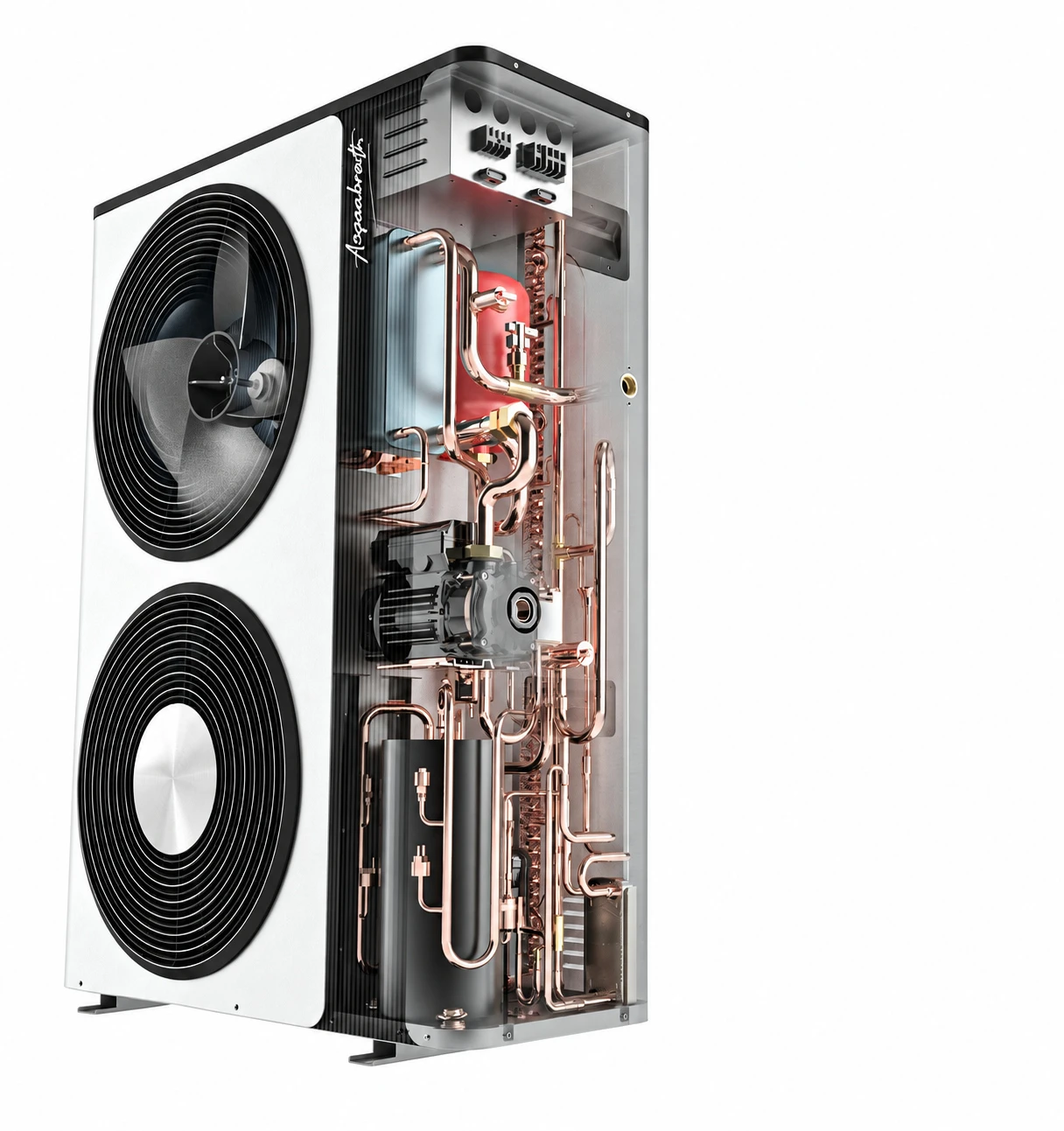

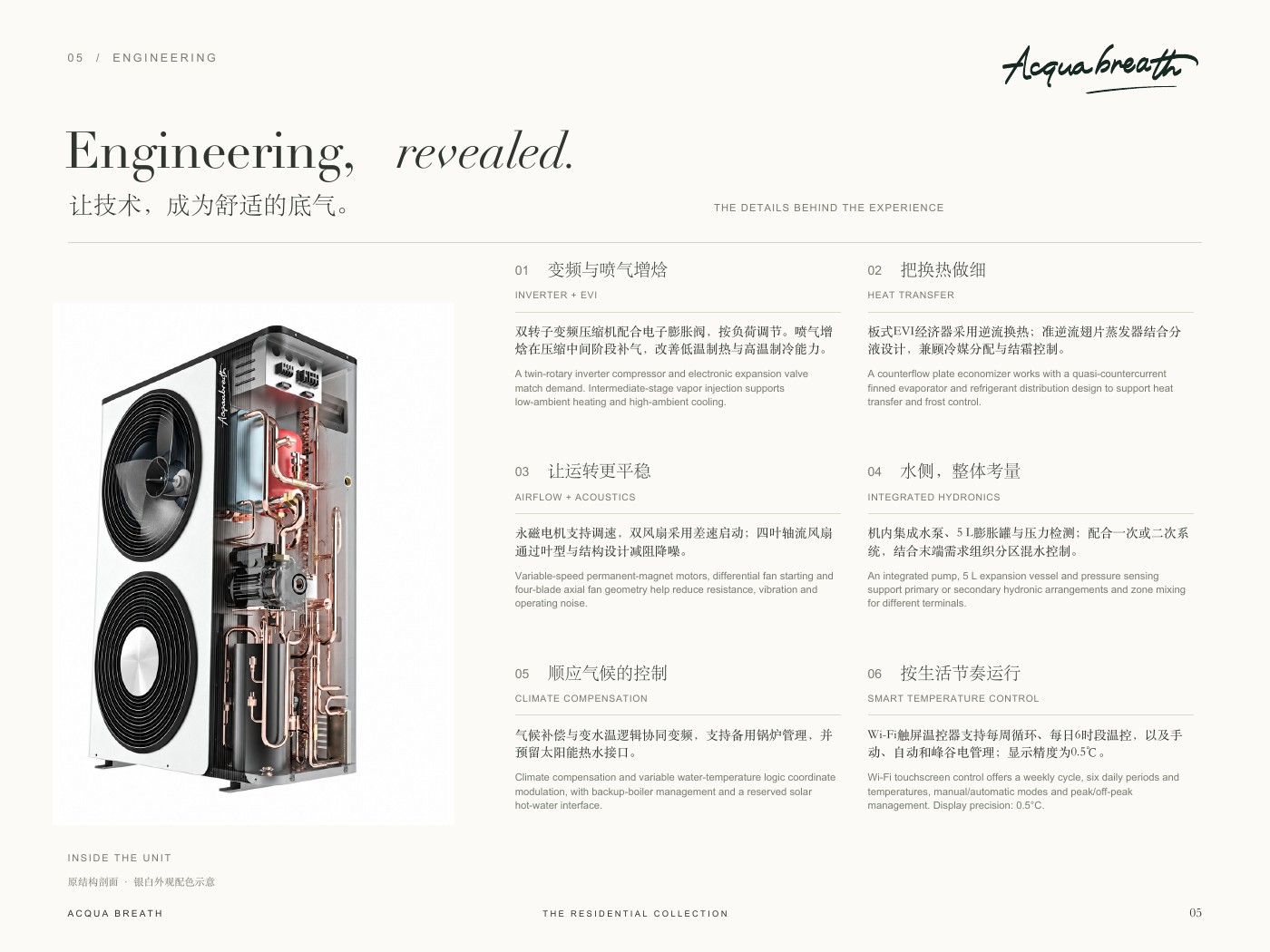

Engineering, revealed.

Zoom100%

Select a marker on the unit to inspect its structure.

INVERTER + EVI

A twin-rotary inverter compressor and electronic expansion valve match demand. Intermediate-stage vapor injection supports low-ambient heating and high-ambient cooling.

HEAT TRANSFER

A counterflow plate economizer works with a quasi-countercurrent finned evaporator and refrigerant distribution design to support heat transfer and frost control.

AIRFLOW + ACOUSTICS

Variable-speed permanent-magnet motors, differential fan starting and four-blade axial fan geometry help reduce resistance, vibration and operating noise.

INTEGRATED HYDRONICS

An integrated pump, 5 L expansion vessel and pressure sensing support primary or secondary hydronic arrangements and zone mixing for different terminals.

CLIMATE COMPENSATION

Climate compensation and variable water-temperature logic coordinate modulation, with backup-boiler management and a reserved solar hot-water interface.

SMART TEMPERATURE CONTROL

Wi-Fi touchscreen control offers a weekly cycle, six daily periods and temperatures, manual/automatic modes and peak/off-peak management. Display precision: 0.5°C.

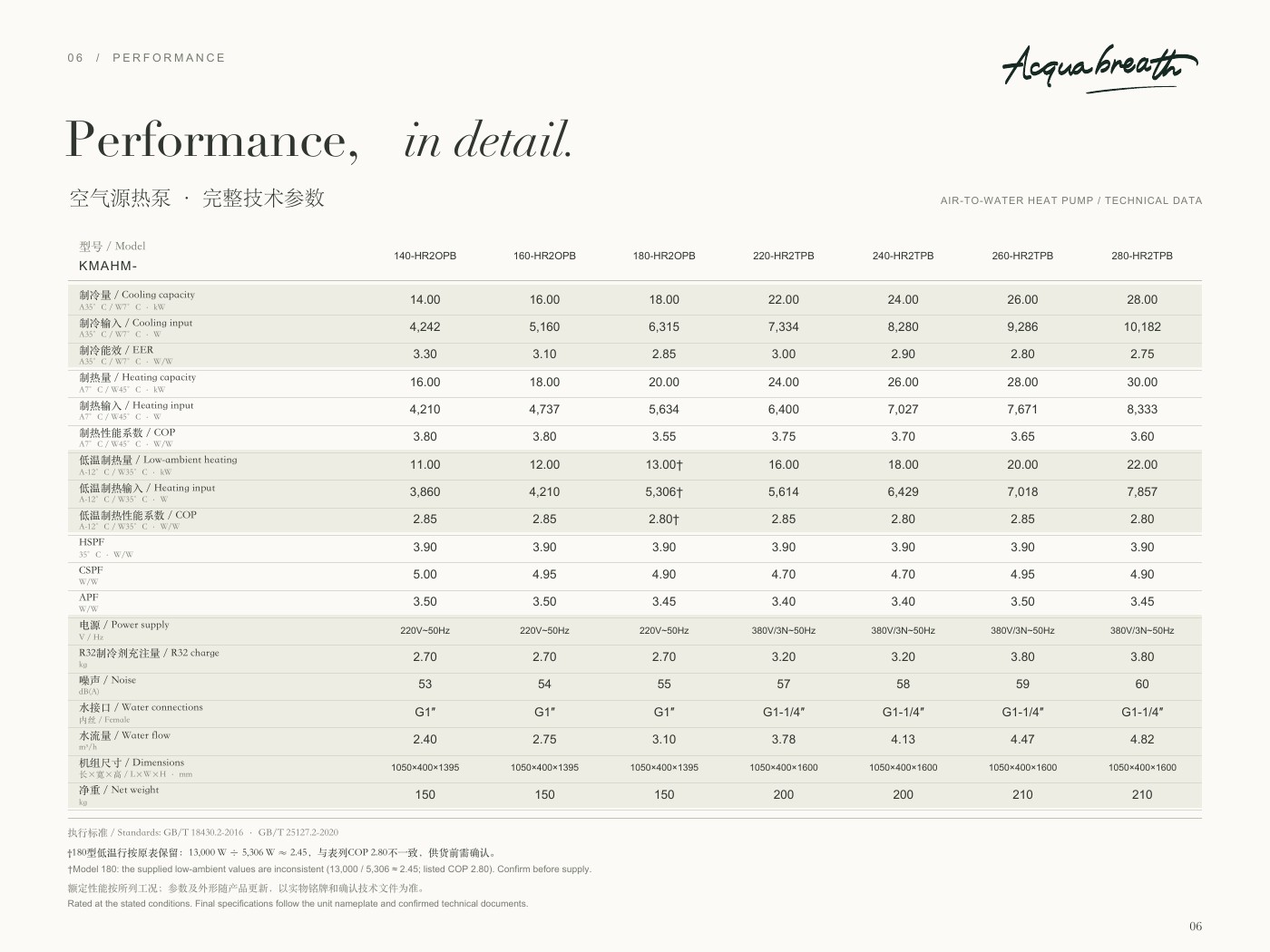

AIR-TO-WATER HEAT PUMP / TECHNICAL DATA

TECHNICAL REGISTER

Performance,
in detail.

Model viewFind a parameterSwipe to view the complete data


Parameter / unit	KMAHM-140-HR2OPB	KMAHM-160-HR2OPB	KMAHM-180-HR2OPB	KMAHM-220-HR2TPB	KMAHM-240-HR2TPB	KMAHM-260-HR2TPB	KMAHM-280-HR2TPB
Cooling capacityA35°C / W7°C · kW	14.00	16.00	18.00	22.00	24.00	26.00	28.00
Cooling inputA35°C / W7°C · W	4,242	5,160	6,315	7,334	8,280	9,286	10,182
EERA35°C / W7°C · W/W	3.30	3.10	2.85	3.00	2.90	2.80	2.75
Heating capacityA7°C / W45°C · kW	16.00	18.00	20.00	24.00	26.00	28.00	30.00
Heating inputA7°C / W45°C · W	4,210	4,737	5,634	6,400	7,027	7,671	8,333
COPA7°C / W45°C · W/W	3.80	3.80	3.55	3.75	3.70	3.65	3.60
Low-ambient heatingA-12°C / W35°C · kW	11.00	12.00	13.00†	16.00	18.00	20.00	22.00
Heating inputA-12°C / W35°C · W	3,860	4,210	5,306†	5,614	6,429	7,018	7,857
COPA-12°C / W35°C · W/W	2.85	2.85	2.80†	2.85	2.80	2.85	2.80
HSPF35°C · W/W	3.90	3.90	3.90	3.90	3.90	3.90	3.90
CSPFW/W	5.00	4.95	4.90	4.70	4.70	4.95	4.90
APFW/W	3.50	3.50	3.45	3.40	3.40	3.50	3.45
Power supplyV / Hz	220V~50Hz	220V~50Hz	220V~50Hz	380V/3N~50Hz	380V/3N~50Hz	380V/3N~50Hz	380V/3N~50Hz
R32 chargekg	2.70	2.70	2.70	3.20	3.20	3.80	3.80
NoisedB(A)	53	54	55	57	58	59	60
Water connectionsFemale	G1″	G1″	G1″	G1-1/4″	G1-1/4″	G1-1/4″	G1-1/4″
Water flowm³/h	2.40	2.75	3.10	3.78	4.13	4.47	4.82
DimensionsL×W×H · mm	1050×400×1395	1050×400×1395	1050×400×1395	1050×400×1600	1050×400×1600	1050×400×1600	1050×400×1600
Net weightkg	150	150	150	200	200	210	210

Standards: GB/T 18430.2-2016 · GB/T 25127.2-2020

†Model 180: the supplied low-ambient values are inconsistent (13,000 / 5,306 ≈ 2.45; listed COP 2.80). Confirm before supply.

Rated at the stated conditions. Final specifications follow the unit nameplate and confirmed technical documents.

THE ART OF COMFORT

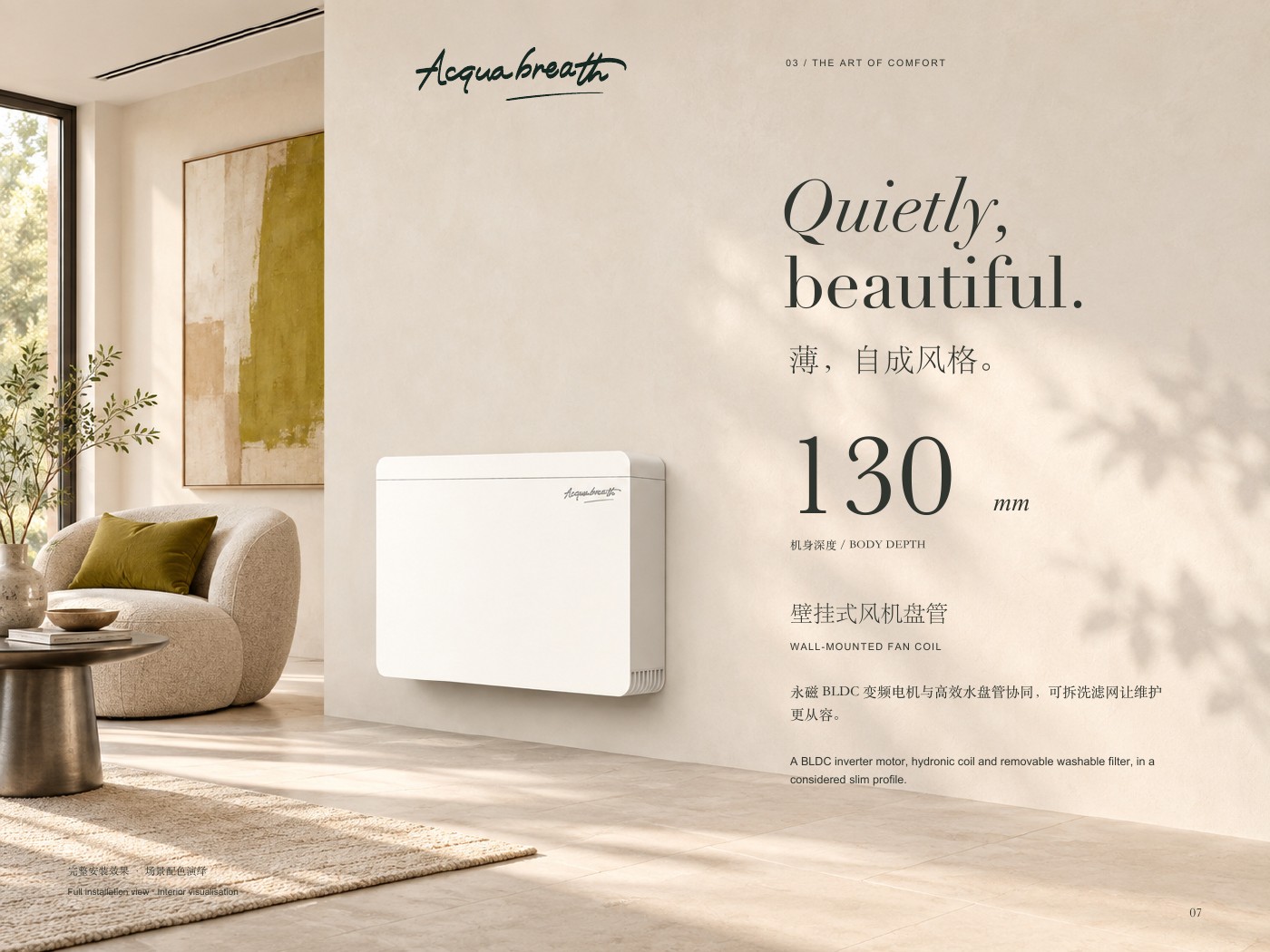

WALL-MOUNTED FAN COIL

Quietly,
beautiful.

130 mm: BODY DEPTH

A BLDC inverter motor, hydronic coil and removable washable filter, in a considered slim profile.

Double-click the unit to separate the parts; double-click the blue coil or front panel to assemble.

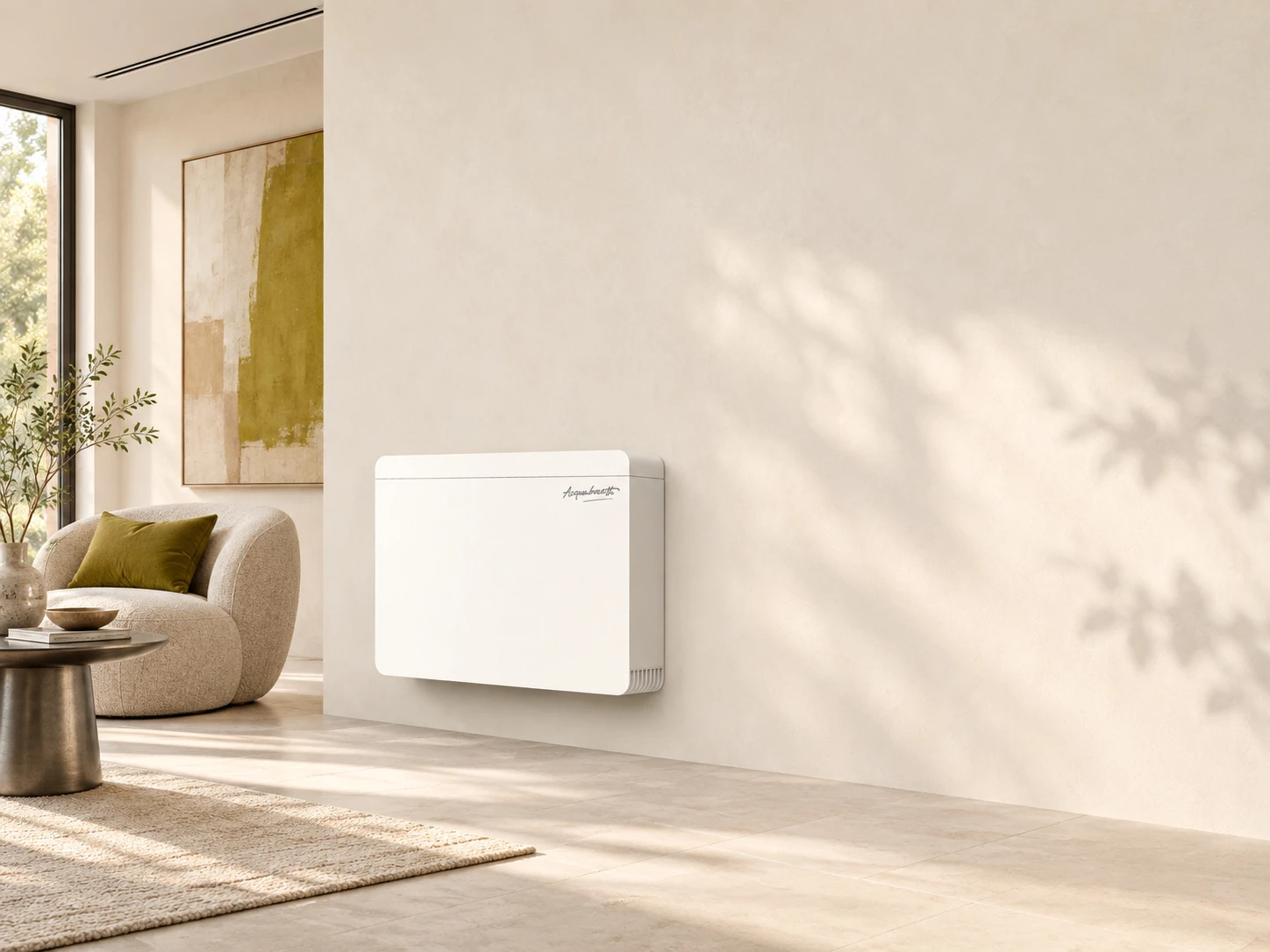

Full installation view · Interior visualisation

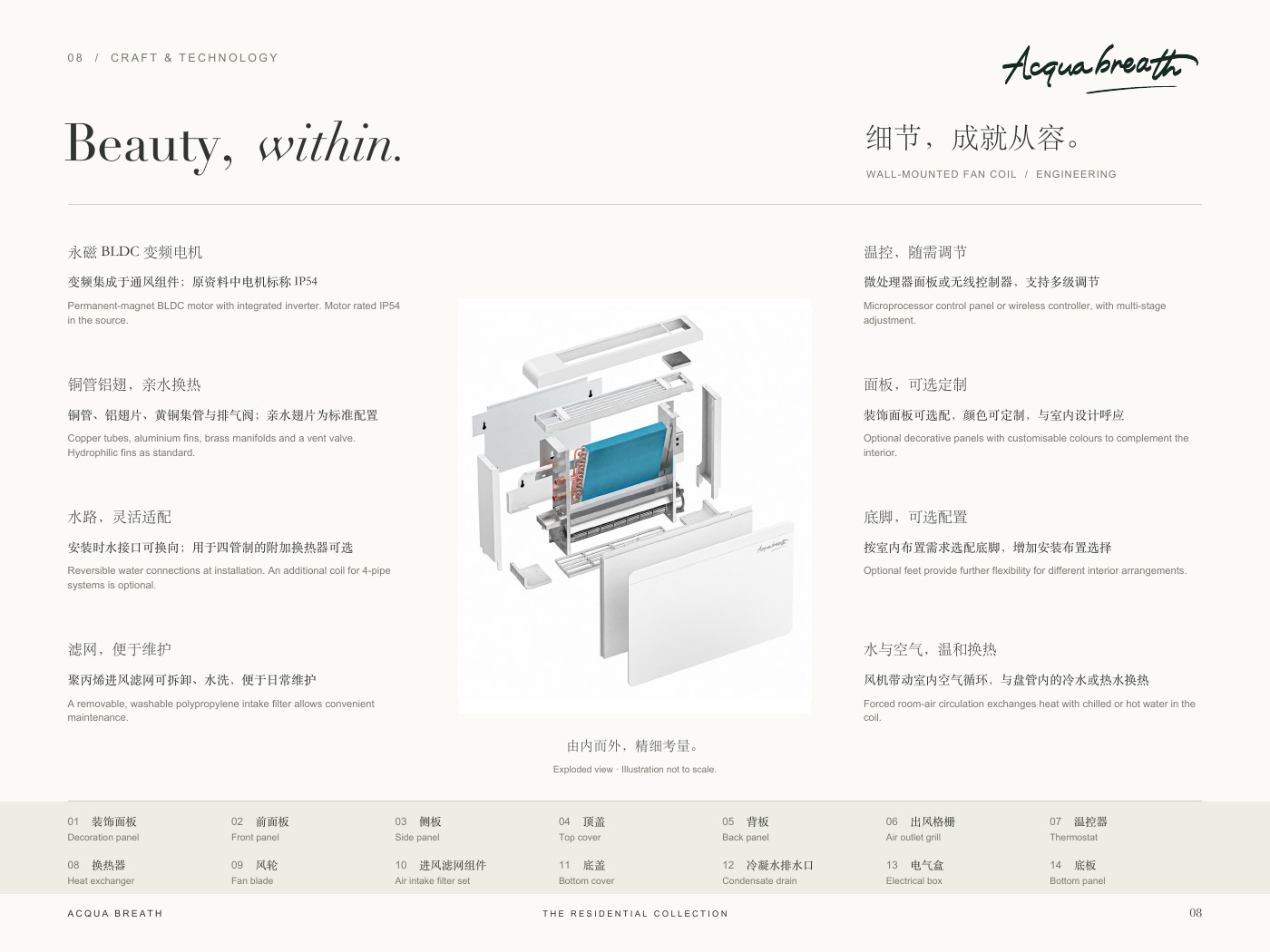

CRAFT & TECHNOLOGY

WALL-MOUNTED FAN COIL / ENGINEERING

Beauty, within.

Permanent-magnet BLDC motor with integrated inverter.

Motor rated IP54 in the source.

Microprocessor control panel or wireless controller, with multi-stage adjustment.

Copper tubes, aluminium fins, brass manifolds and a vent valve.

Hydrophilic fins as standard.

Optional decorative panels with customisable colours to complement the interior.

Reversible water connections at installation.

An additional coil for 4-pipe systems is optional.

Optional feet provide further flexibility for different interior arrangements.

A removable, washable polypropylene intake filter allows convenient maintenance.

Forced room-air circulation exchanges heat with chilled or hot water in the coil.

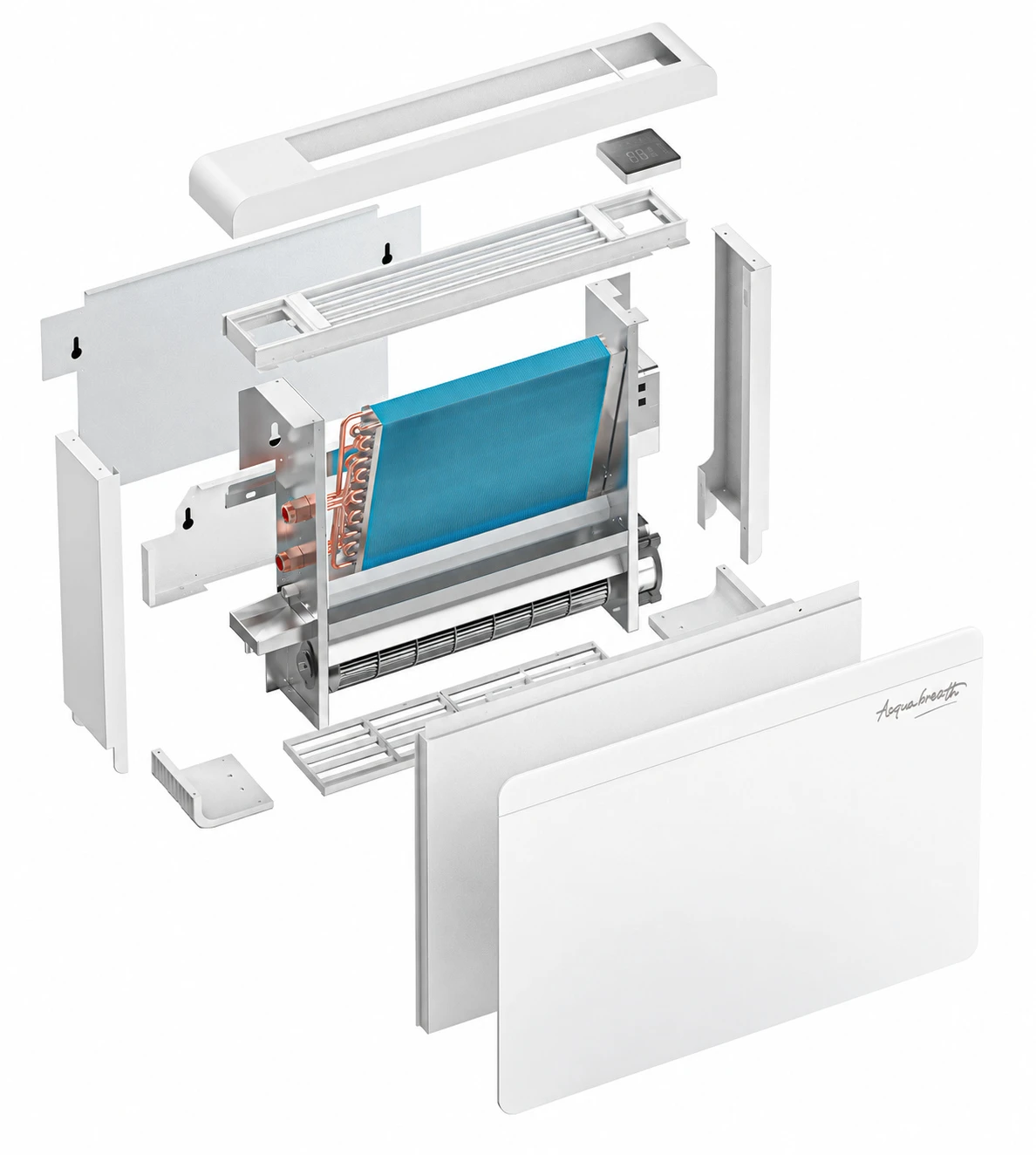

Original installation and structure imagery · View

Original fan-coil installation references

WALL-MOUNTED FAN COIL

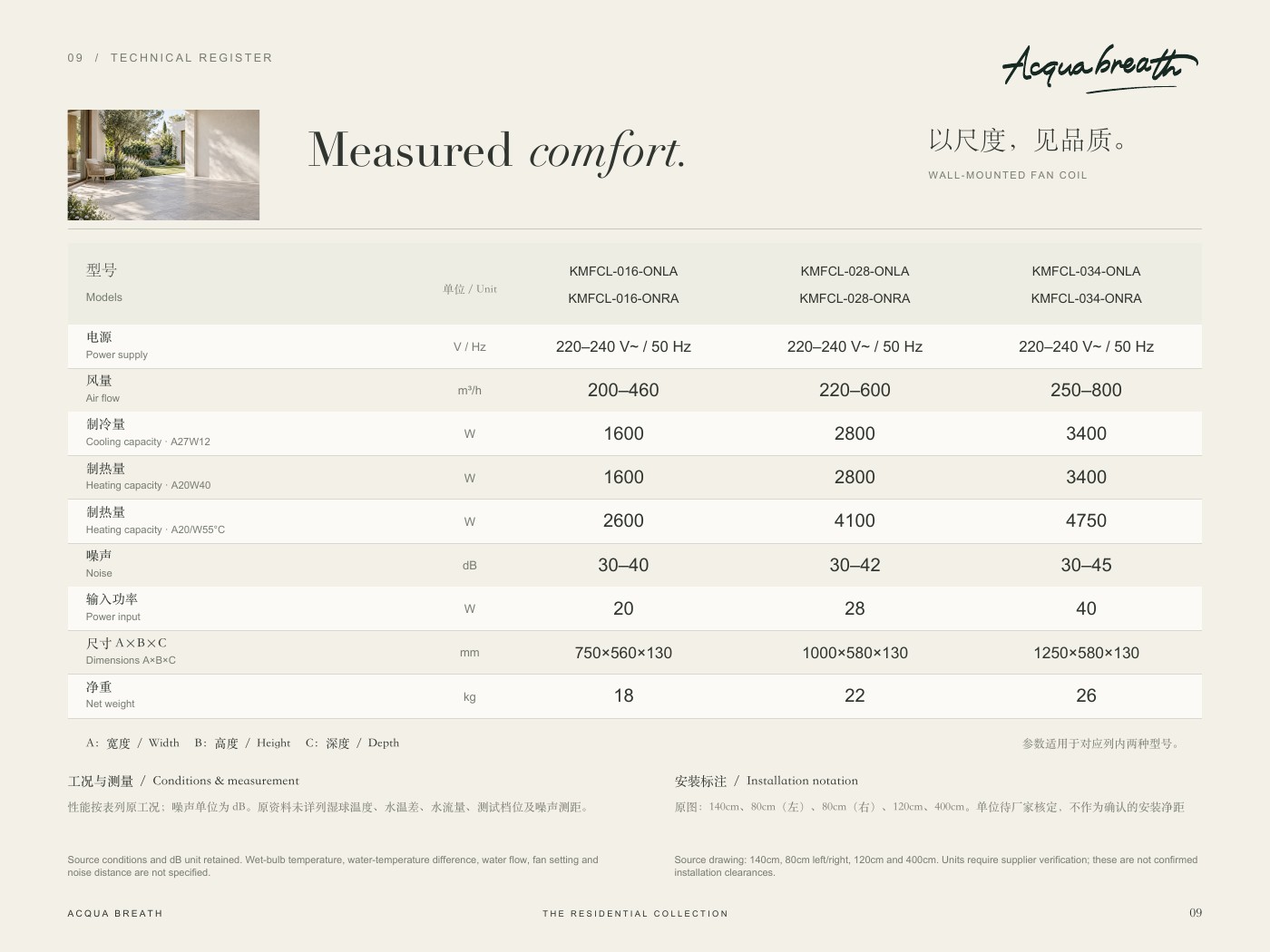

TECHNICAL REGISTER

Measured comfort.

Model viewFind a parameterSwipe to view the complete data


Parameter / unit	KMFCL-016-ONLA KMFCL-016-ONRA	KMFCL-028-ONLA KMFCL-028-ONRA	KMFCL-034-ONLA KMFCL-034-ONRA
Power supplyV / Hz	220–240 V~ / 50 Hz	220–240 V~ / 50 Hz	220–240 V~ / 50 Hz
Air flowm³/h	200–460	220–600	250–800
Cooling capacityA27W12 · W	1600	2800	3400
Heating capacityA20W40 · W	1600	2800	3400
Heating capacityA20/W55°C · W	2600	4100	4750
NoisedB	30–40	30–42	30–45
Power inputW	20	28	40
Dimensions A×B×Cmm	750×560×130	1000×580×130	1250×580×130
Net weightkg	18	22	26

Parameters apply to both models listed in the corresponding column.

A · Width / B · Height / C · Depth

Conditions & measurement

Source conditions and dB unit retained. Wet-bulb temperature, water-temperature difference, water flow, fan setting and noise distance are not specified.

Installation notation

Source drawing: 140cm, 80cm left/right, 120cm and 400cm. Units require supplier verification; these are not confirmed installation clearances.

THE RESIDENTIAL COLLECTION

At home,
in nature.

Experience nature, without leaving home.

DESIGNED AROUND THE HOME

Match the source, air handler and terminals to the building load, space and airflow paths. Coordinate water temperature, airflow and slight positive pressure.
